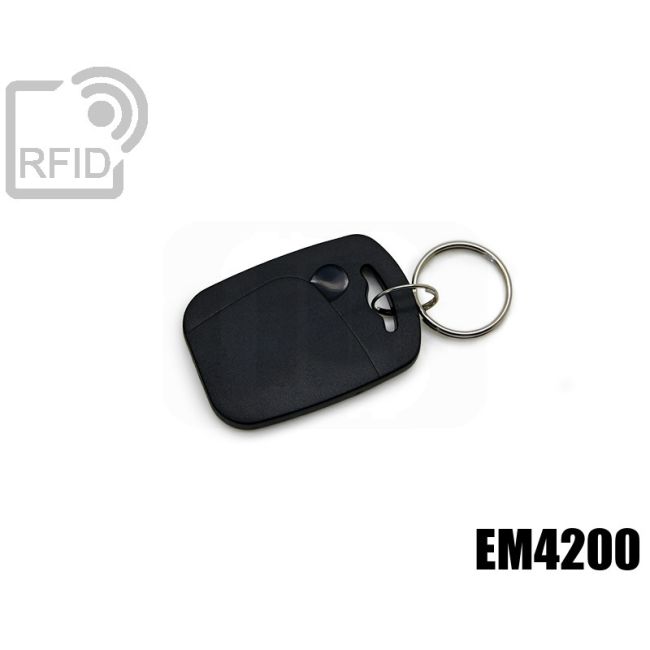

Rectangular RFID tag keyfob EM4200

SKU

KY07C02

Add to Wish List Add to Compare

Colorful ABS Contactless RFID Proximity Key Ring with Metal Ring EM4200 RFID chip read only LF 125 KHz.

Customization instructions

500 pz to € 0.601 each 8% discount
1000 pz to € 0.532 each 19% discount
2000 pz to € 0.470 each 28% discount

Details

IP68 fully waterproof plastic keyfob, customizable with screen printing and offset. Particularly suitable for corporate access control and offices, dispensers and vending machines. EM4200 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.

APPLICATIONS
- Personal identification
- Electronic money
- Holiday parks
- Campsites
- Access control
- Vending
- Energy saving switches

More Information

More Information
Chip RFID	EM4200
Chip Frequency	LF 125 KHz
Compatibility NFC	NO
Chip Manufacturer	EM Microelectronic
Material	ABS
Dimension	44 x 30 x 4.0 mm
Weight	4,5 g
Chip functions	EM4200 is a CMOS integrated circuit used to construct read-only RF transponders. It was designed to directly replace all the previous Read Only chips EM4100/4102 and EM4005/4105 produced by EM Microelectronic-Marin. Compared to EM4100/4102 and EM4005/4105, the chip provides higher read range performance and features a 250pF resonant capacitor on the antenna terminals (selectable through configuration options). The unique 128-bit code is laser-programmed into ROM during manufacturing. During reading, it is possible to choose whether to use the factory-programmed unique code from ROM with 64, 96, or 128 bits. The circuit is powered by the same electromagnetic field used for data transmission. Through modulation on the 125 KHz carrier frequency, the chip will transmit the factory-programmed unique code present in ROM.
