RFID glass fiber tag EM4102
SKU
TR05C17

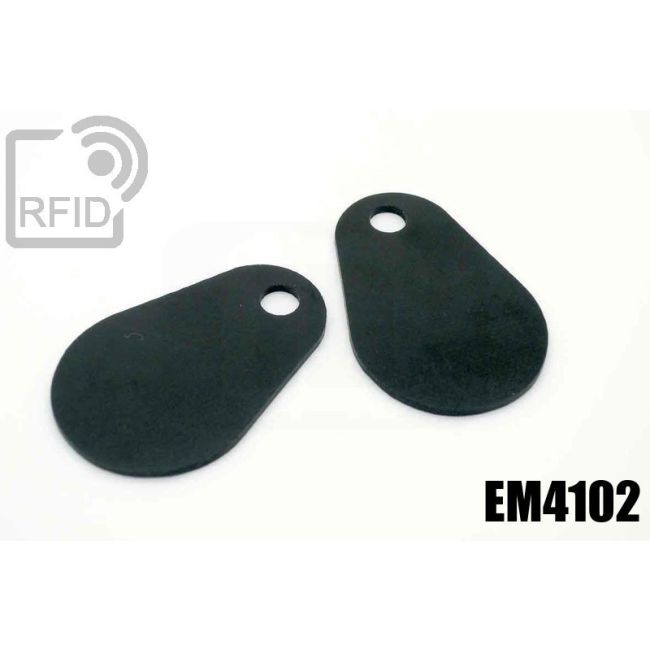

High temperature resistant nylon fiber oval RFID tag EM4102 RFID chip read only LF 125 KHz.
- 500 pz to € 1.692 each 10% discount
- 1000 pz to € 1.523 each 19% discount
- 2000 pz to € 1.375 each 27% discount
The RFID tag is made of high temperature and solvent resistant material and can be applied by cord or clamp. Particularly suitable for identifying garments, products and components in production and logistics environments. It also allows the protection of the brand and the limitation of counterfeiting in branded products and original spare parts. EM4102 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.
APPLICATIONS
- Public transport tickets
- Clothing identification labels
- Loyalty cards/ Fidality Card
- Attendance
- Safety systems
- Access control
- Vending systems
APPLICATIONS
- Public transport tickets
- Clothing identification labels
- Loyalty cards/ Fidality Card
- Attendance
- Safety systems
- Access control
- Vending systems
| Chip RFID | EM4102 |
|---|---|
| Chip Frequency | LF 125 KHz |
| Compatibility NFC | NO |
| Chip Manufacturer | EM Microelectronic |
| Material | Fiberglass |
| Dimension | 45 x 30 x 1,5 mm |
| Weight | 3,5 g |
| Chip functions | EM4102 (previously known as H4102) is a CMOS integrated circuit used to construct read-only RF transponders. The circuit is powered through the magnetic field used for data transmission. When the chip receives the clock signal, it transmits back the 64-bit code present in its ROM memory by modulating the signal. Unique code ROM programming is done during manufacturing through laser fusion of polysilicon. The chip is available in various data transfer speeds on the carrier frequency: 64, 32, and 16 periods, and with different types of encoding: Manchester, Biphase, and PSK. Due to low power consumption, buffer capacitors are not necessary, only the external coil. The 78 pF resonance capacitor is also integrated. |
