RFID tag tubes EM4102
SKU
TR08C17

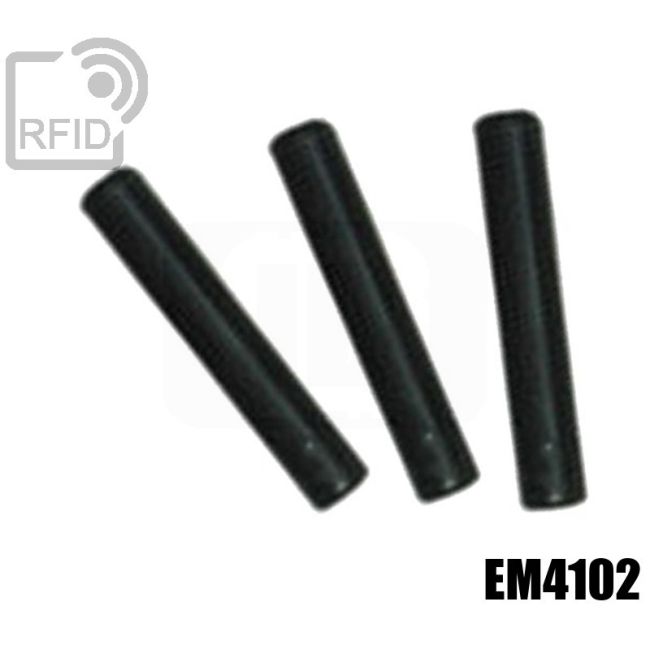

Nylon RFID tag tube EM4102 RFID chip read only LF 125 KHz.
- 500 pz to € 1.638 each 10% discount
- 1000 pz to € 1.474 each 19% discount
- 2000 pz to € 1.331 each 27% discount
The RFID tag tube is made of nylon and can be inserted into any hole on wood, plastic and masonry.
Fully waterproof IP68 is resistant to rust, wet environments and chemicals.
The assembly is done by drilling a hole, inserting the tag and eventually closing with resin. EM4102 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.
APPLICATIONS
- RFID guidelines for forklifts
- Round control points in safety systems
- Identification of elements under masonry
Fully waterproof IP68 is resistant to rust, wet environments and chemicals.
The assembly is done by drilling a hole, inserting the tag and eventually closing with resin. EM4102 RFID chip read only LF 125 KHz memory 64 bit original EM Microelectronic.
APPLICATIONS
- RFID guidelines for forklifts
- Round control points in safety systems
- Identification of elements under masonry
| Chip RFID | EM4102 |
|---|---|
| Chip Frequency | LF 125 KHz |
| Compatibility NFC | NO |
| Chip Manufacturer | EM Microelectronic |
| Material | Resin |
| Dimension | Diameter 4-4,5 x 15,5-25 mm |
| Weight | 2 g |
| Chip functions | EM4102 (previously known as H4102) is a CMOS integrated circuit used to construct read-only RF transponders. The circuit is powered through the magnetic field used for data transmission. When the chip receives the clock signal, it transmits back the 64-bit code present in its ROM memory by modulating the signal. Unique code ROM programming is done during manufacturing through laser fusion of polysilicon. The chip is available in various data transfer speeds on the carrier frequency: 64, 32, and 16 periods, and with different types of encoding: Manchester, Biphase, and PSK. Due to low power consumption, buffer capacitors are not necessary, only the external coil. The 78 pF resonance capacitor is also integrated. |
